BOS-G-PACK5.1 is a high-performance rack-mounted lithium battery module designed for scalable energy storage systems. Built with advanced LiFePO4 technology, it delivers excellent safety, long lifespan, and stable power output for residential and commercial applications.
Nume de marcă :
DeyeTip :
LiFePo4Tensiune nominală :
51.2VCapacitatea bateriei :
5.12KWHNumărul de cicluri :
25±2°C, 0.5C/0.5C, EOL70%≥6000Eficiența încărcării :
100% @0.2CEficiența descărcării :
96~99% @1CComunicare :
CAN2.0 / RS485Culoare și OEM :
Whitegaranție :
5 Years
-High-performance Battery: Utilizes LiFePO₄ cell chemistry for reliability
-Flexible Configuration: Supports 3-12 battery modules in series, with module energy at 5.12 kWh, nominal voltage 51.2 V, and capacity 100 Ah
-Efficient Power & Energy: Offers rated DC power up to 61.44 kW, system energy up to 61.44 kWh, and usable energy up to 55.29 kWh
-Wide Temperature Range: Works in charge 0 -55°C, discharge -20 -55°C; stores at 0 -35°C
-Smart Monitoring & Control: Features status indicators (yellow for high voltage, red for alarm) and CAN2.0/RS485 communication

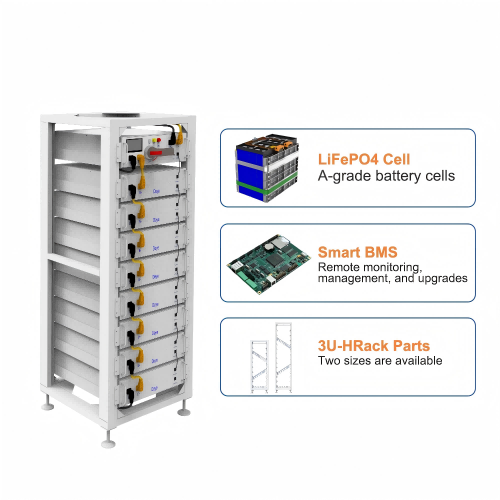

-High-Quality LiFePO4 Cells
Equipped with A-grade LiFePO4 battery cells, ensuring high safety, long cycle life, and stable performance.
-Intelligent Smart BMS
Integrated Smart Battery Management System (BMS) supports remote monitoring, real-time data tracking, and firmware upgrades, enhancing system reliability and control.

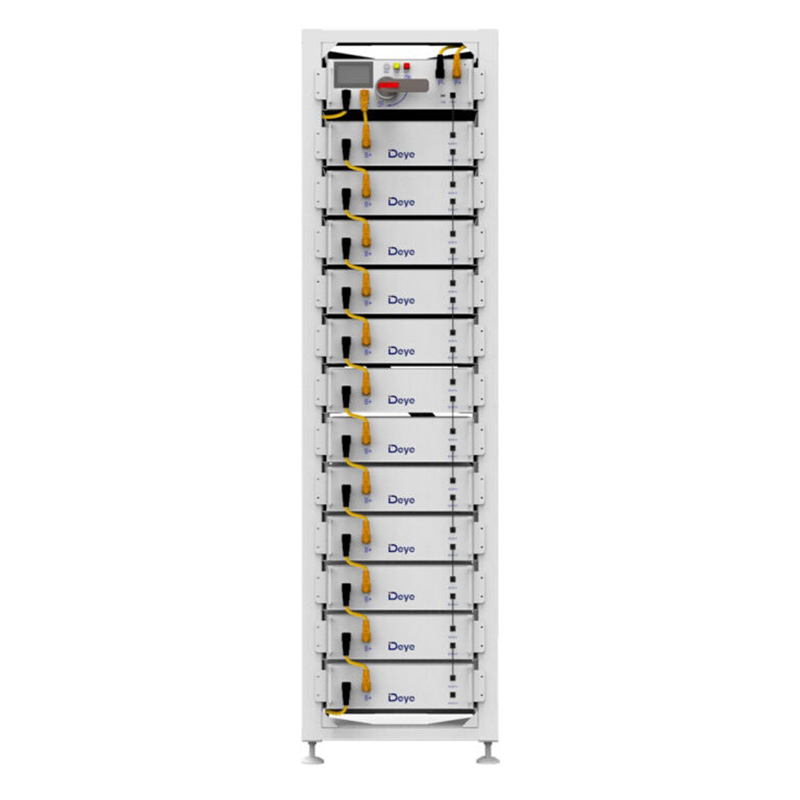

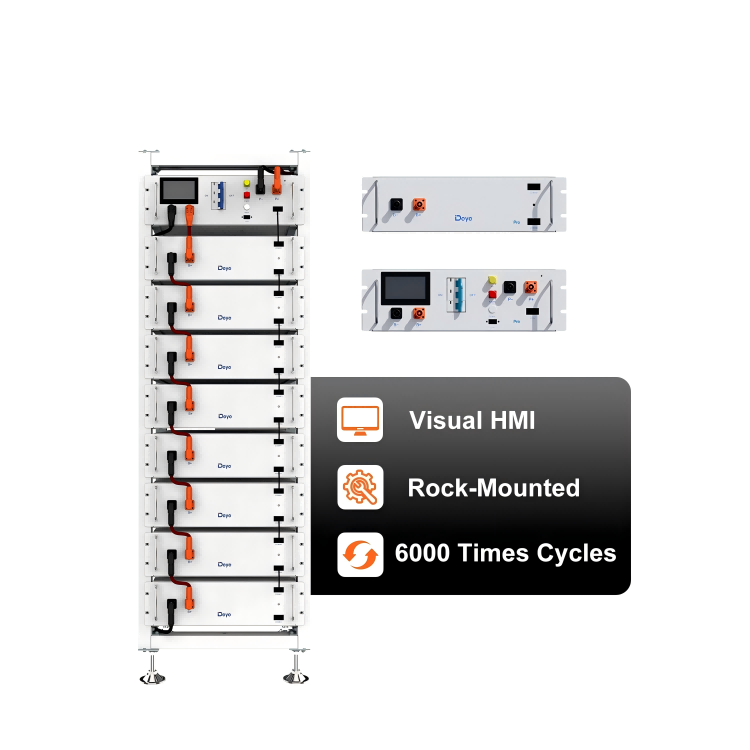

-Modular 3U Rack Design
Standardized 3U rack-mounted modules, compatible with two rack sizes, allowing flexible capacity expansion and easy installation.

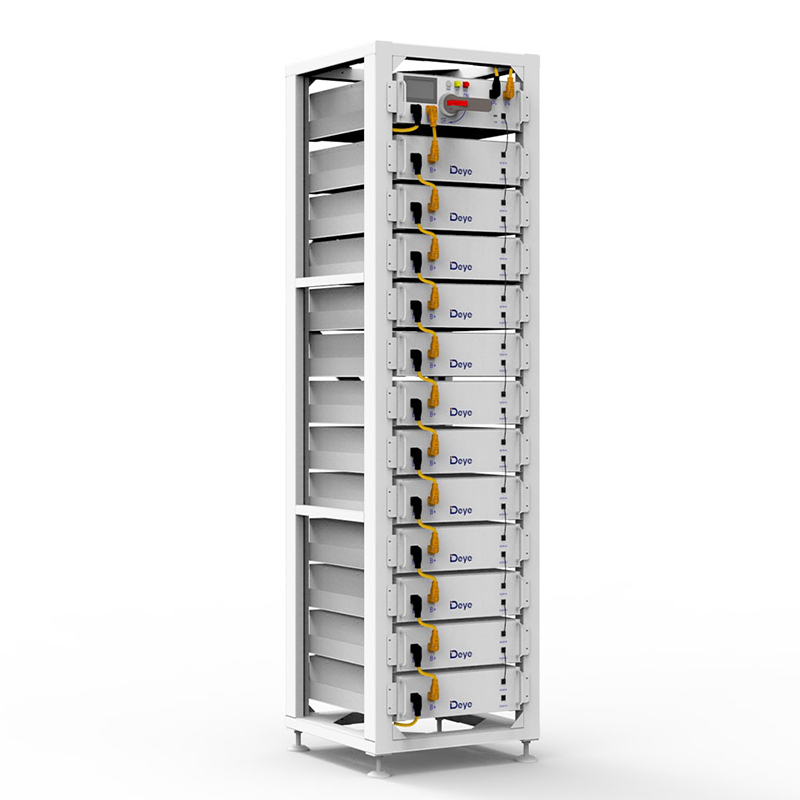

-Scalable Structure
The cabinet supports multiple battery modules stacked vertically, enabling customized energy storage solutions for residential, commercial, and industrial applications.
-User-Friendly Installation
Plug-and-play design with front-access terminals simplifies wiring and maintenance.

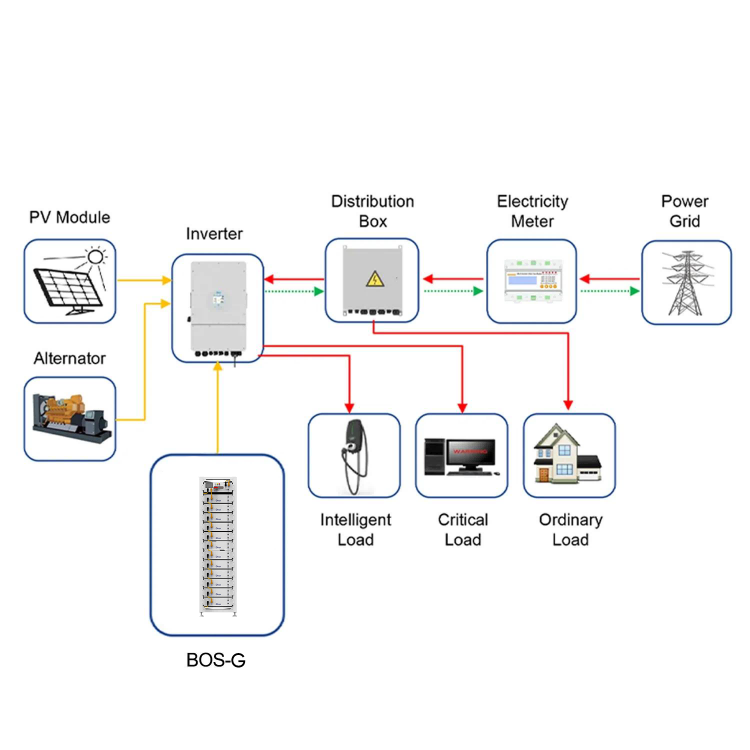

The system is centered around a hybrid inverter, which intelligently manages power flow between multiple energy sources:
PV Modules (Solar Panels) generate clean energy during the day
Battery Storage System (BOS-G) stores excess energy for later use
The alternator (Generator) provides backup power when needed
Utility Grid ensures continuous power availability
Solar energy is prioritized to power loads and charge the battery
Stored energy is used during nighttime or power outages
The system can automatically switch between solar, battery, generator, and grid. Excess power can be fed into the grid (if permitted)
The system supports intelligent distribution of electricity to different types of loads: Intelligent Load – optimized for energy-saving and smart control, Critical Load – ensures uninterrupted power for essential equipment. Ordinary Load – standard household or commercial usage
Certification
