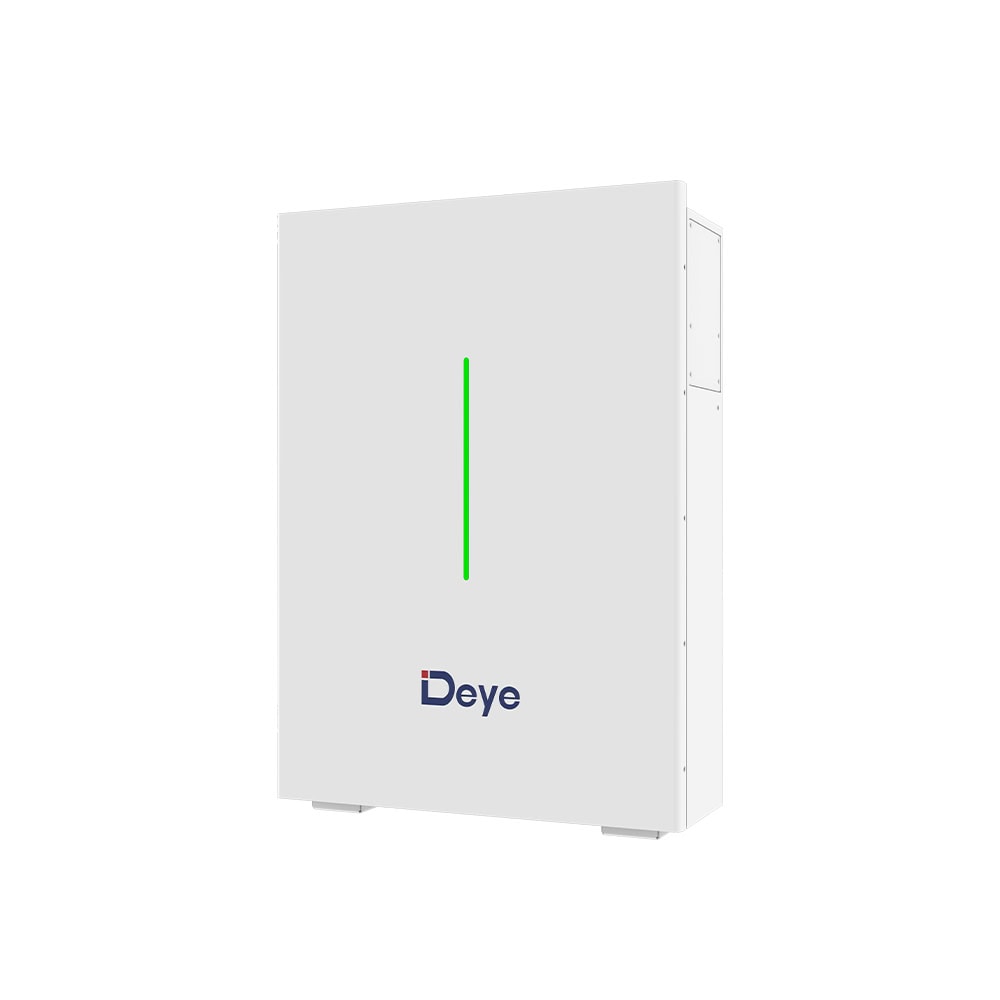

The RW-F10.2-B is a lithium iron phosphate battery developed by DEYE. It provides reliable power for various equipment and systems, making it ideal for applications requiring high power, limited installation space, low-temperature operation, and long cycle life.
Nume de marcă :
DeyeTip :
Lithium BatteryTensiune nominală :
51.2VCapacitatea bateriei :
200AHNumărul de cicluri :
6000Eficiența încărcării :
0.5CEficiența descărcării :
0.5CComunicare :
CAN2.0, RS485

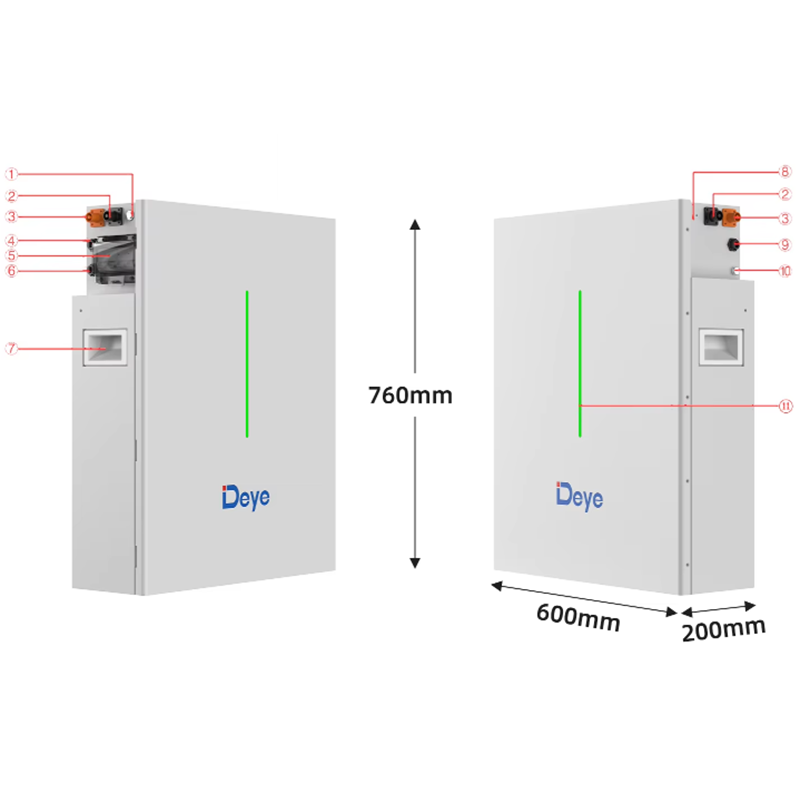

| 1.BMS Swich | 7.Handle |
| 2.Battery negative | 8.Grounding bolt |
| 3.Battery positive | 9.Parallel communication port OUT |
| 4.Inverter CAN/RS485 port PCS | 10.Breather valve |
| 5.Macro circuit breaker | 11.Battery Indicators |
| 6.Parallel communication port IN |

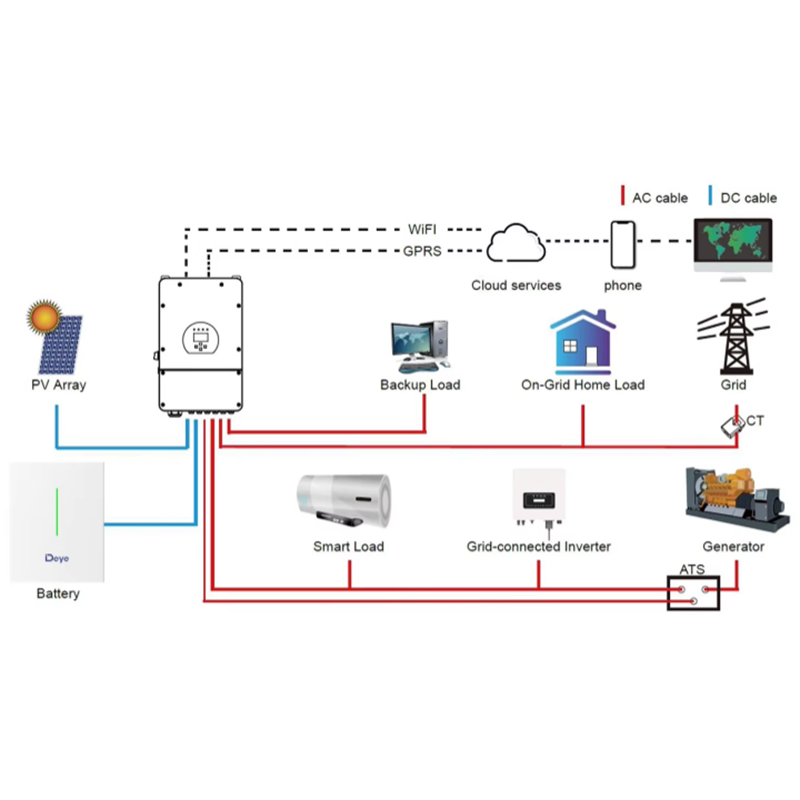

The right picture shows the basic application of this battery. To form a complete operating system, the following devices are requireded: 1.A generator or utility grid 2.PV modules 3.A low-voltage hybrid inverter (for charging and discharging)
Main Specifications:
Module: RW-F10.2
Battery Chemistry: Lifepo4
Operating Voltage(V): 43.2~57.8V
Recommend charge and discharge current(A): 100A
Dimension(W*H*D):600*830*200mm
