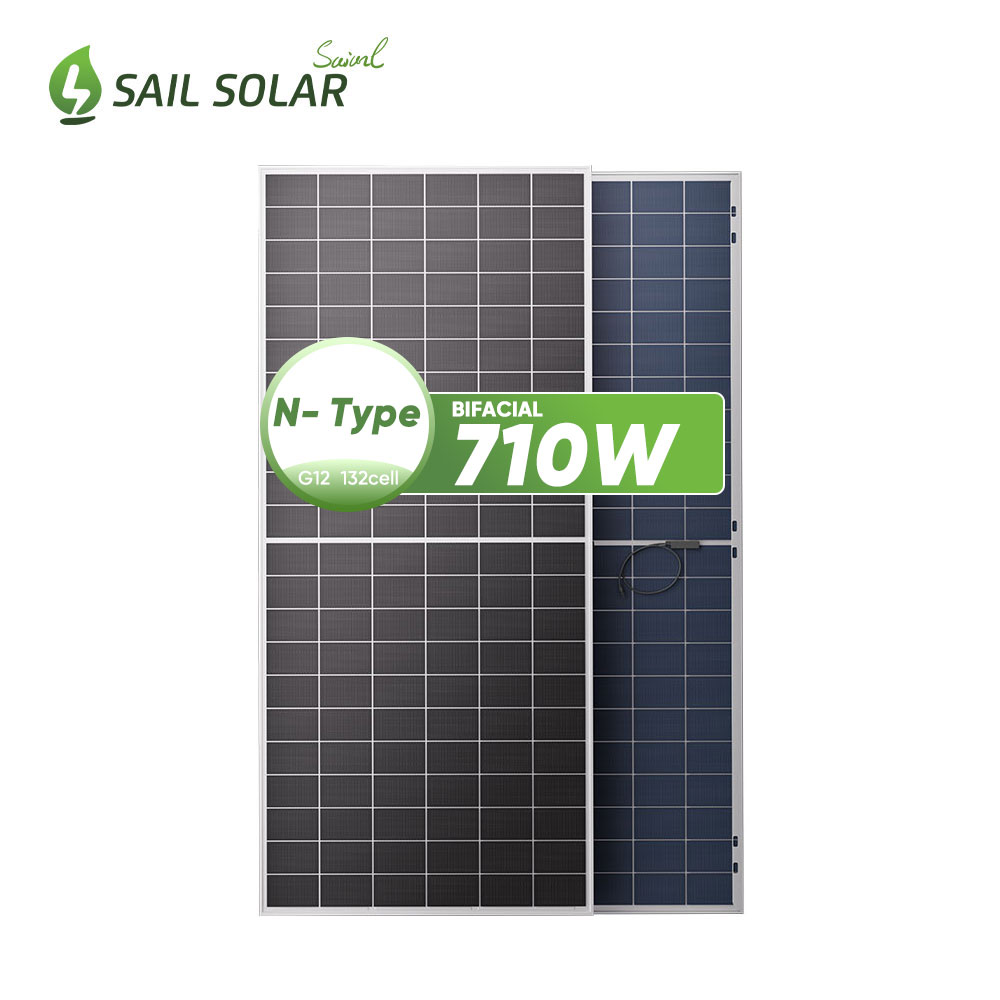

210mm Solar Cells 132Cells 690W 695W 700W 705W 710W 715W 720W Solar PV Panels High Efficiency Monocrystalline Topcon and HJT MBB Photovoltaic Bifacial Solar Panel Module
Nume de marcă :
SAIL SOLARGama de putere :
690~720WDimensiunile Modulului :
2384x1303x35mmGreutate :
34kgSticlă :
2.0mm coated tempered glassCadru: :
Anodized aluminium alloy (reinforced high-load optional)Cutie de distribuție: :
Ip68 rated (3 by pass diodes)Cablu :
4mm2, 300mm in length, length can be customizedMax. Eficienţă :
23.14%Încărcare de vânt/zăpadă :
5400Pa/2400PaNumărul de celule :
132ellsConector :
MC4210mm N type Half Cult 132Cells MBB Mono 690Watt ~720Watt Solar Panel
TOPCon solar cells achieves a greater effect. In particular, passivating the rear side with a layer of polycrystalline silicon requires a lot of technical effort but allows the solar cell to handle higher voltages, thus increasing efficiency. The solar cell can directly convert light energyinto electrical energy through photoelectric effector photo-chemical effect. As long as it is exposedto light, voltage and current can be output instant.
The peak power panel of solar panel industry, up to 720W rated power, super size and efficiency, best choice for ultra power plant installing.
Future mainstream solar panel, single face encapsulated, stable super performance to guarantee power plant’s generation.
SMBB big size cells, half cut welding and 12 strings layout, twin panels in parallel connection, more higher power output & better shadow performance.
Split small junction boxes with 3 chip diodes in 20A fuse rate, IP68 protection with potting silica for heating emission.
1500Vdc system voltage, more panels in one string brings less cable & structure, effectively reduce projects construction cost.
1.3mm thickness aluminum frame plus middle profile on backside, strong mechanical durability, passed 2400Pa wind load and 5400Pa snow load.
0~+5W power output, low power degradation and 30 years long lifespan.
12 years quality warranty and 30 years linear power output guarantee.
TUV Rheinland IEC , CE approved.
| Module ID | SAS690N-132G12 | SAS695N-132G12 | SAS700N-132G12 | SAS705N-132G12 | SAS710N-132G12 | SAS715N-132G12 | SAS720N-132G12 |
| Maximum Power (Pmax/W) | 690 | 695 | 700 | 705 | 710 | 715 | 720 |
| Maximum Power Voltage (Vmp/V) | 39.84 | 40.03 | 40.23 | 40.42 | 40.62 | 40.82 | 41.02 |
| Maximum Power Current (Imp/A) | 17.32 | 17.36 | 17.40 | 17.44 | 17.48 | 17.52 | 17.56 |
| Open Circuit Voltage (Voc/V) | 47.95 | 48.15 | 48.34 | 48.54 | 48.73 | 48.92 | 49.11 |
| Short Circuit Current (Isc/A) | 18.29 | 18.34 | 18.39 | 18.44 | 18.49 | 18.54 | 18.59 |
| Module Efficiency (%) | 22.21 | 22.37 | 22.53 | 22.70 | 22.86 | 23.02 | 23.18 |
| Power Output Tolerance (W) |
0~+5W | ||||||
| Temperature Coefficient of Isc |
+0.045%/°C | ||||||
| Temperature Coefficient of Voc |
-0.250%/°C | ||||||
| Temperature Coefficient of Pmax | -0.290%/°C | ||||||
STC (Standard Testing Conditions): Irradiance 1000W/m2, Cell Temperature 25°C, Spectra at AM1.5
Test uncertainty for Pmax: ±3%
Certification
SAIL SOALR' s pv panel module have been certified by professional third-party testing bodies around the world, and the testing conditions are complex and diverse, from ordinary installation conditions to various extreme weather conditions, natural environments etc. We do our best to provide customers with quality products, for the customer's investment and income to provide protection.
