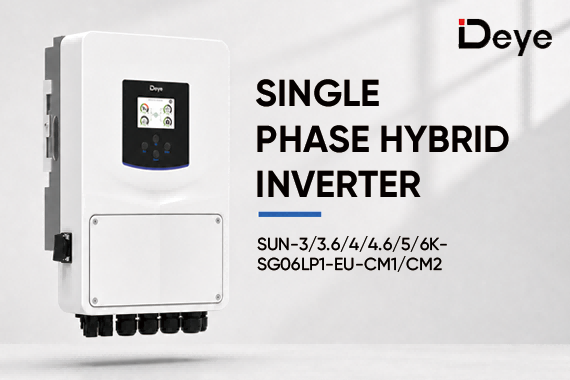

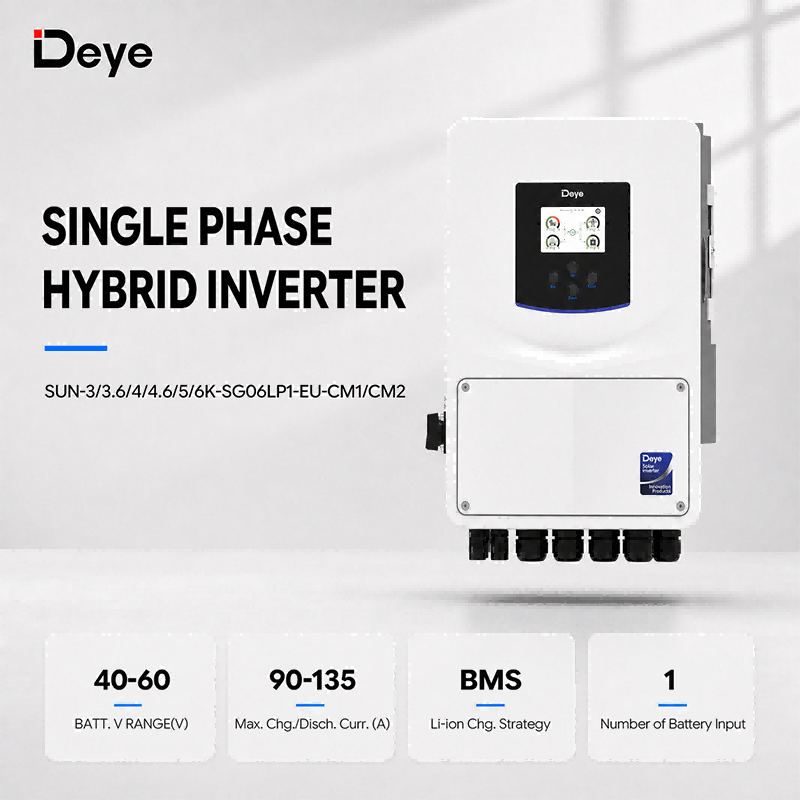

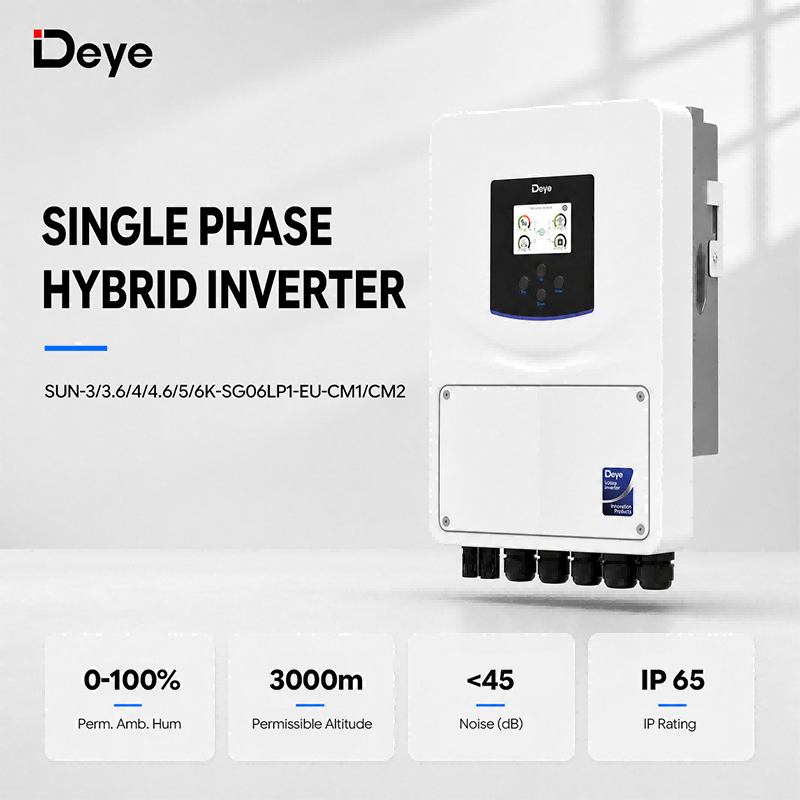

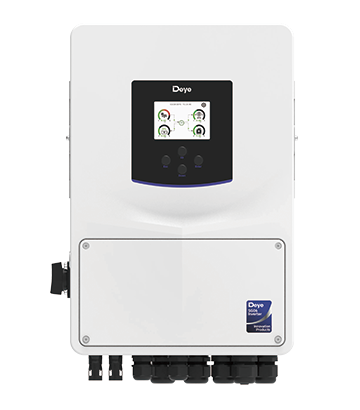

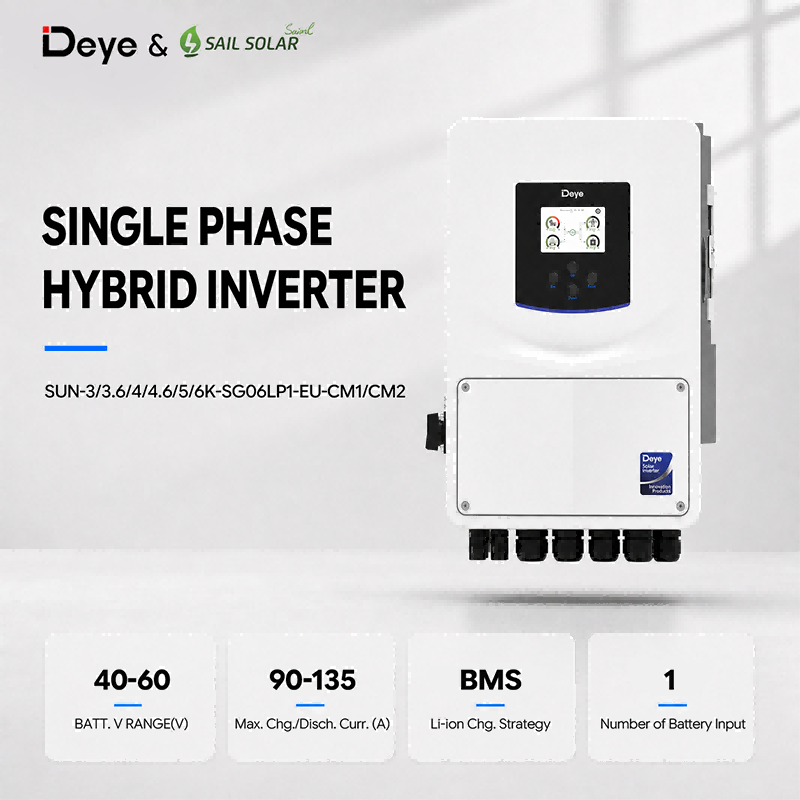

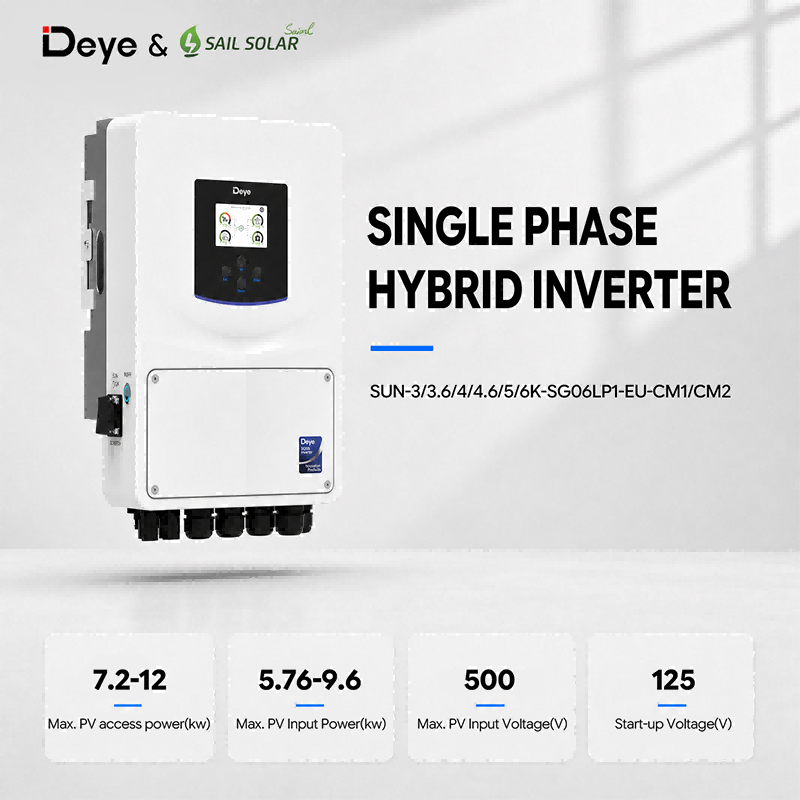

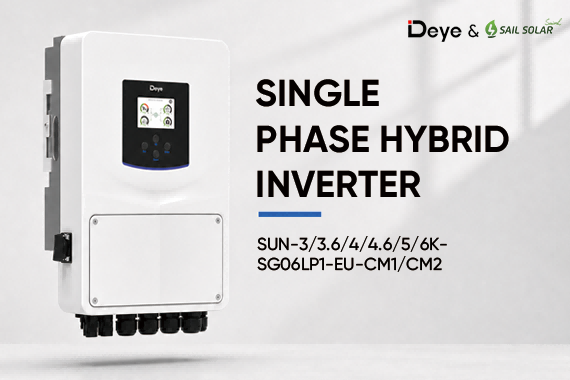

The SUN-3~6K-SG06LP1-EU-CM1/CM2 series is a residential hybrid inverter designed for low-voltage battery systems. It supports both grid-connected and backup operation, enabling efficient energy management for homes and small commercial installations. With intelligent battery control, flexible PV configuration, and reliable performance, it helps maximize solar self-consumption while ensuring a stable power supply.
Nume de marcă :
DeyeGama de putere :
3/3.6/4/4.6/5/6KTemperatură de lucru :
-40 to +60℃, >45℃ DeratingComunicare BMS :
WIFI, RS485, CANMax. Eficienţă :
97.6%garanție :
5 Years/10 YearsIntegrat :
DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (AFCI), Anti-islanding Protection, DC SwitcGrad de protectie :
IP 65THD :
<3% (of nominal power)Euro Eficiență :
96.5%Stil de instalare :
Wall MountedEficienta MPPT :
>99%
- Colorful touch LCD, IP65 protection degree
- AC coupled to retrofit existing solar system
-Max. 16 pcs parallel for on-grid and off-grid
- Operation: Supports multiple batteries in parallel
-Max. charging/discharging current of 140A
-6 time periods for battery charging/discharging
-Supports storing energy from a diesel generator

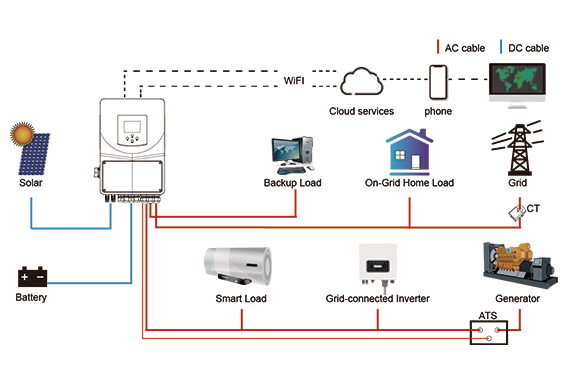

The system application diagram illustrates a typical hybrid solar power configuration in which the inverter serves as the central energy management unit. It integrates photovoltaic modules, grid or generator power, battery storage systems, and electrical appliances into a complete energy solution.
The inverter intelligently manages the power flow between solar power generation, battery charging and discharging, and grid power supply to maximize energy efficiency and improve self-consumption. During grid outages, the batteries can continue to power critical loads, ensuring reliable system operation.
This solution is suitable for various residential and light commercial applications, providing a stable power supply for everyday household and office equipment, including lighting, televisions, computers, refrigerators, air conditioners, and other common appliances.
Certification
FAQ
A: Low-voltage lithium battery system, and compatible with a battery management system (BMS).
Q2. Is parallel operation supported? And how many pieces max in parallel?
A: Yes, Max. 16 pcs parallel for on-grid and off-grid operation.
A: Yes. With a compatible monitoring device, users can view real-time operating data, energy production, battery status, and system performance through a remote monitoring platform.
